Featuring 72 replaceable carbide tips, the KG540 Power Rake pulverizes soil and refines surfaces for new lawn installations or renovations.
Perfect for golf courses, schools, municipalities, and homeowners tackling renovation projects—the KG540 makes soil prep efficient and precise.
Restore compacted or eroded cart paths by raking, leveling, and redistributing material for smoother play and easier maintenance.

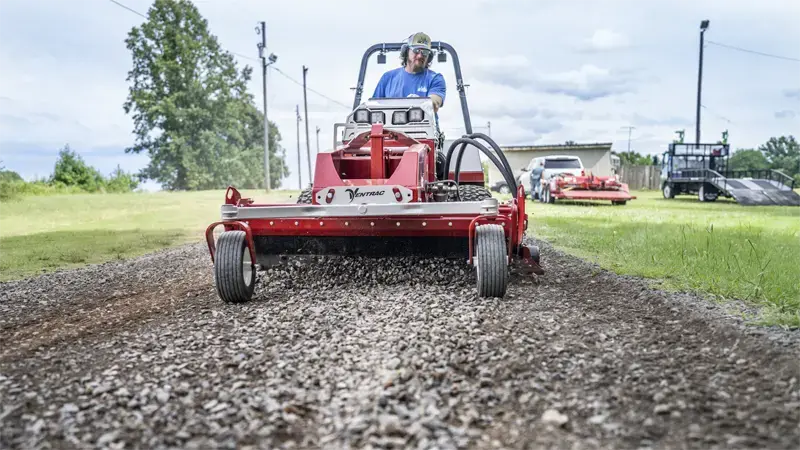

Use forward or backward drum rotation to rework gravel surfaces, bringing fines up and smoothing bumps.
Remove weeds and unwanted vegetation from gravel by raking and refining surface, restoring driveway appearance.
Break up soil clods and remove rocks to create a fine, even base for grass seed or sod.
After groundwork, use KG540 to prep large areas quickly, refining soil for sod or seed with minimal manual finish work.
Level uneven ground quickly and consistently, saving hours of manual raking when preparing lawns.
A detailed look at the carbide tip rotor in action shows how the KG540 pulverizes ground and refines surfaces in a single pass.
Smooth uneven cart paths by adjusting rotor height and angle, removing compacted soil and debris to restore safe and even footing.
Bring old gravel back to the surface and normalize the driveway finish using the reversible drum and hydraulic angle adjustment.
See the 72 replaceable carbide tips in action as they grind and pulverize soil and debris for fine, seed-ready ground.

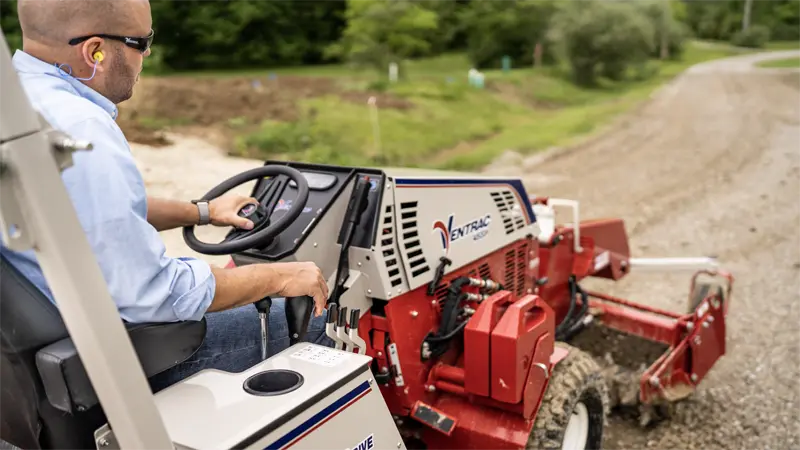

With hydraulic rotor height adjustment (+2" above / -6" below level) and 18° left/right hydraulic angle control, the KG540 delivers precision grading and material routing from the operator seat.

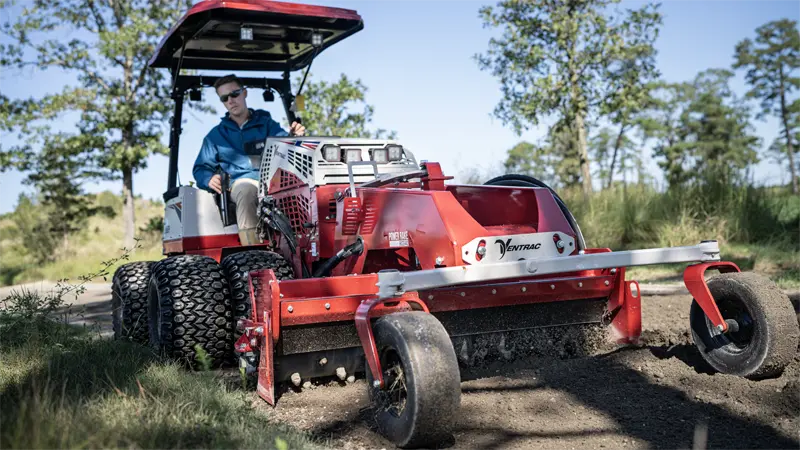

Pulverize rough soil patches with the Power Rake to prepare for overseeding, creating a uniform surface for healthy turf recovery.

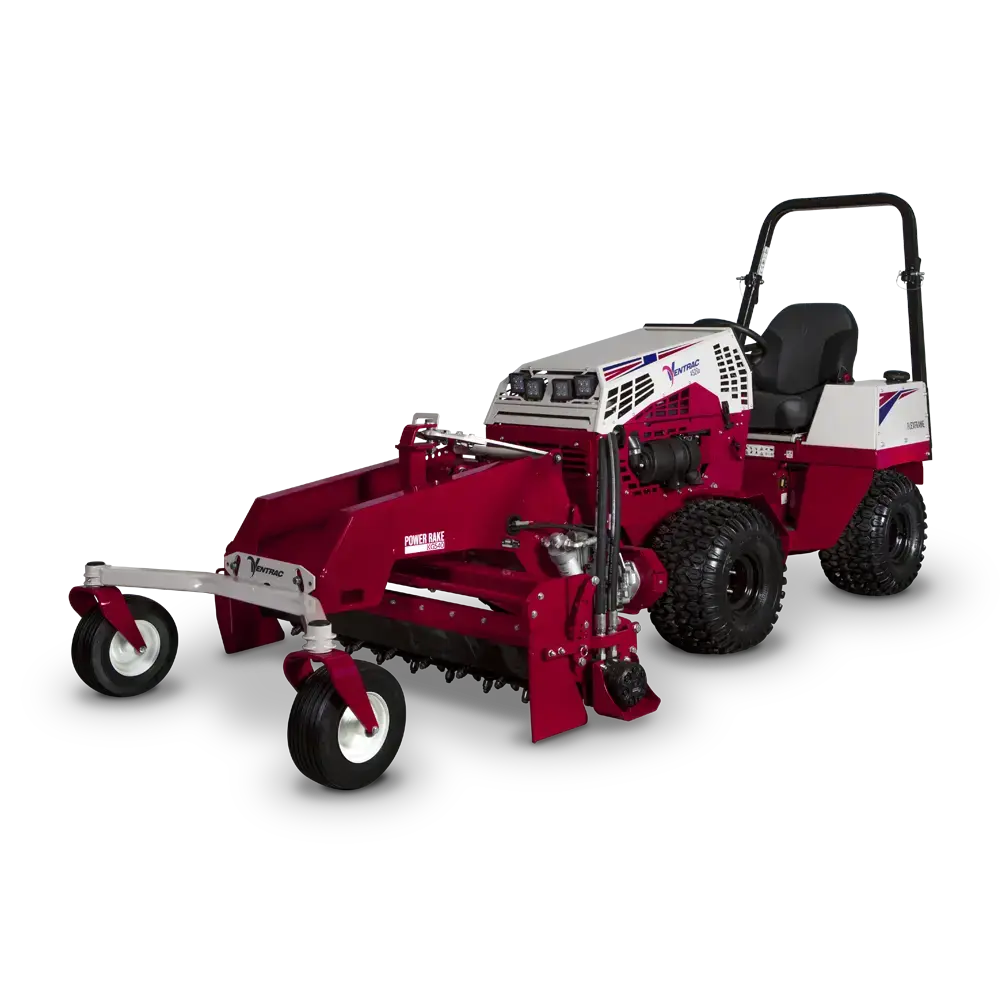

The KG540 Power Rake is the ultimate tool for reshaping uneven ground and preparing dirt for new lawn installations. For easy ground prep on yard installations, this robust machine is best at removing surface rocks and debris, creating a level, prepped finish for seeding.

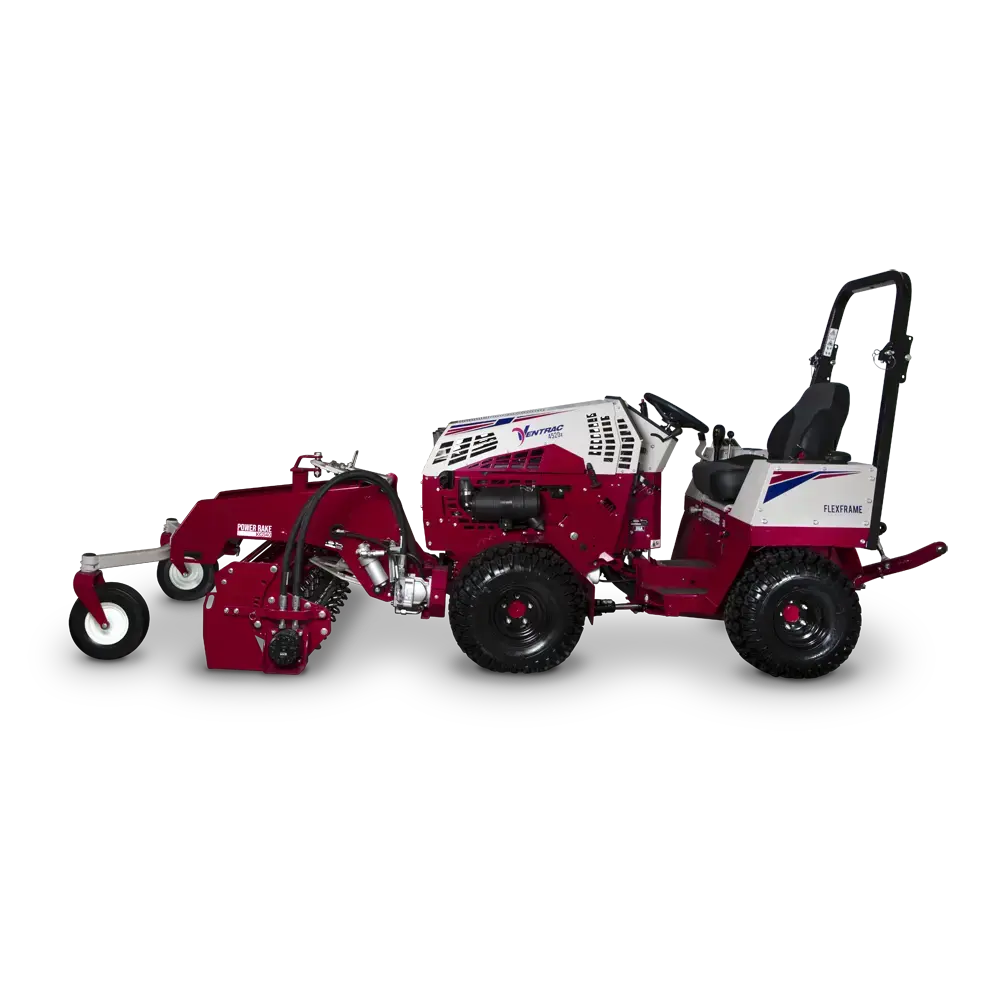

The compact design of the tractor and attachment allows the operator to work in tight quarters where it is difficult for other machines to navigate.
Refreshing a gravel driveway is one task where the Power Rake excels by bringing old gravel back to the surface for a fresh gravel finish.
Several features enhance the KG540 Power Rake including a hydraulic height adjustment that allows precise control from the driver’s seat. Additional features include a pivoting front axle to assist in self-leveling. The option to remove the axle provides the ability to work up closer to structures.

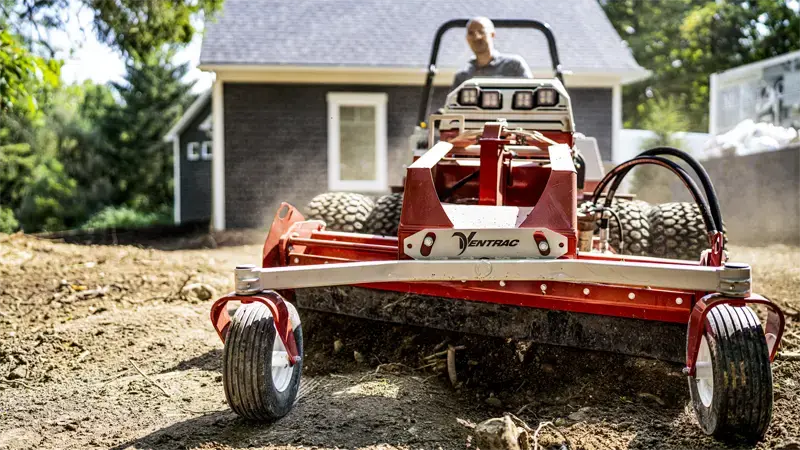

Powering the action of the KG540 Power Rake are seventy-two replaceable carbide tips that pulverize and refine the soil. The reversible drum can carry soil or stone forward or backwards to allow for forward motion or back-dragging of materials while adjustable wings help control the routing of materials or debris.
2 Tractors, 5 Attachments: 1-Day Total Lawn Transformation.
How to Fix a Yard With One Machine
Installing A New Lawn With Ventrac Equipment
Base Specifications
| Info | |
|---|---|
|
Carbide Tips
|
72(Replaceable)
|
|
Hydraulic Angle
|
18° Left/Right
18° Left/Right
|
|
Product Image
|
|
|
Model
|
|
|
Description
|
Power Rake
|
|
Product Type
|
|
|
Sku
|
39.55436
|
|
Price
|
$9,585
|
| Dimensions | |
|
Overall Length
|
65in
165.1cm
|
|
Overall Width
|
63.5in
161.3cm
|
|
Overall Height
|
34in
86.36cm
|
|
Weight
|
655lb
297.1kg
|
|
Rotor Depth Adjustment (below level,
|
+2in/-6in
+5.08cm/-15.24cm
|
KG540 Benefits
