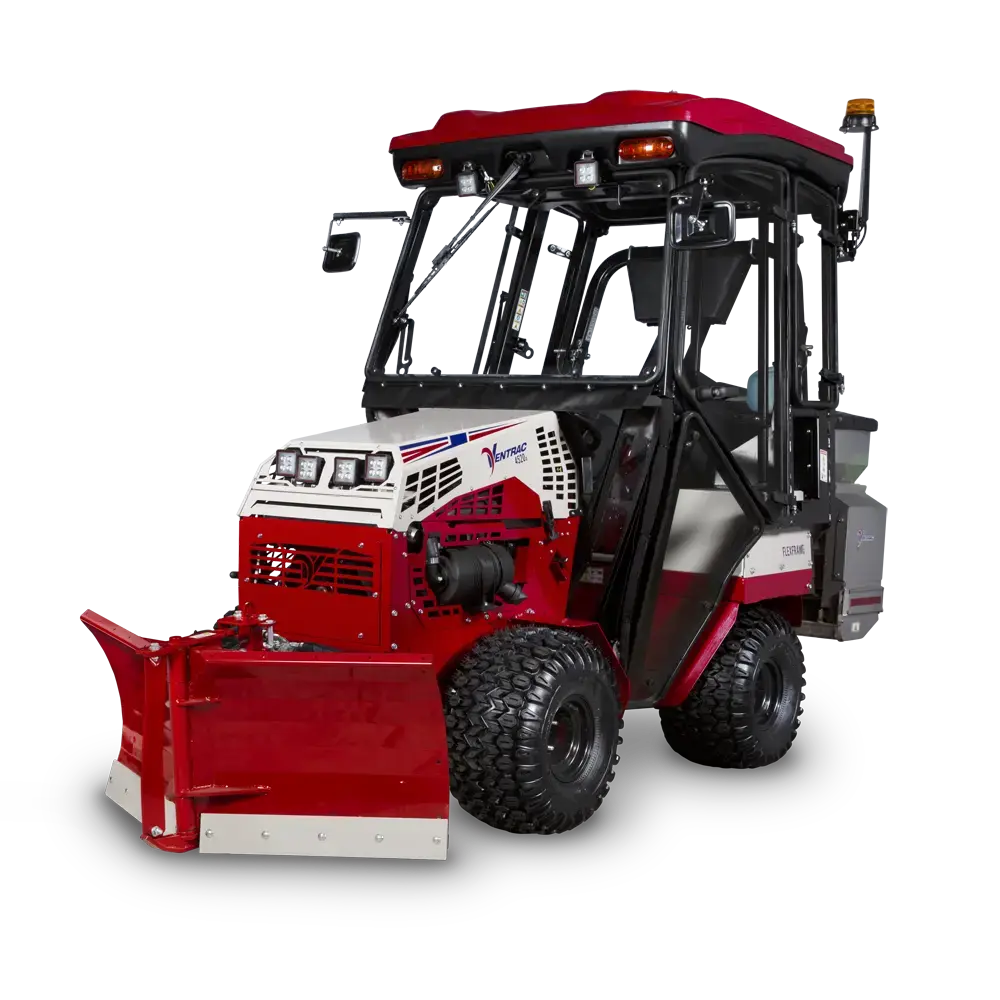

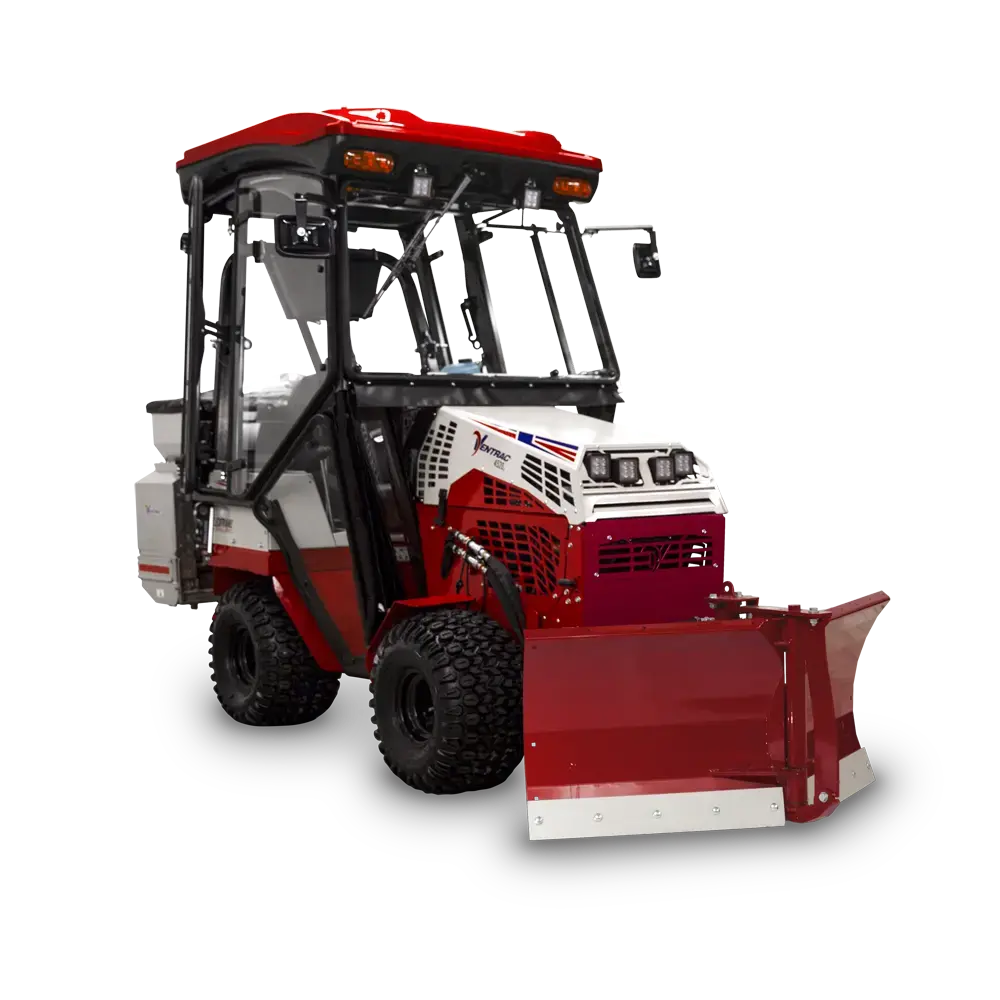

The 55 inch Ventrac KV552 V-Blade Snow Plow maximizes efficiency with the ability to quickly change from V plow to Scoop to straight blade, all from the convenience of Ventracs exclusive S.D.L.A. control system. With a 48 V width, the KV552 is ideal for walks and areas that larger blades are unable to plow.
Standard features include hydraulically activated wing cylinders, mechanical trip, adjustable cast iron skid shoe discs, reversible high carbon hardened steel cutting edges, and a center shoe for gliding over rough terrain. Pivot points are fully greasable to ensure proper operation, even in the worst environments.
The KV552 V-Blade fits Ventrac 3000 and 4000 series tractors, and requires the 12V switch and plug kit.
Simple Start | KV552
If your main objective is to move snow as quickly as possible, the KV552 Ventrac V-Blade is one of the best attachments to do it. This attachment has all the functionality you’d expect from a V-Blade and all the durability you’d expect from Ventrac.
The Ventrac V-Blade can transform from a V-blade to scoop to straight blade, all from the convenience of the operator’s seat. Both left, and right wings on the V-Blade can angle 30-degrees forward or reverse. The width of the V-Blade when both wings are straight is 55 inches. With the wings angled back, the 48-inch V-width is ideal for sidewalks and areas where larger blades cannot plow, making it a compact choice for business, home and property owners.
Standard features include a built-in trip mechanism, adjustable cast iron skid shoe discs, reversible high carbon hardened steel cutting edges, and a center shoe for gliding over rough terrain. Additional 6-inch extensions are available.
The Ventrac V-Blade strikes an excellent balance between capability and versatility. With all of the options available, this attachment is the most durable and versatile compact blade on the market. It will offer years of reliable service in a multitude of different applications.
Products featured in this video: VENTRAC 4500: https://www.ventrac.com/products/tractors/4500 KV552 V-BLADE SNOW PLOW: https://www.ventrac.com/products/attachments/kv552
For more information, visit https://www.ventrac.com/
Find a dealer near you! https://www.ventrac.com/dealers
Get a FREE catalog! https://www.ventrac.com/contact/catalog
Subscribe here! https://www.youtube.com/channel/UC0aiC7V2JS3nh11R5tRuIUw
Connect with Us! Facebook - https://www.facebook.com/ventrac/ Instagram - @ventrac_tractors Twitter - @ventrac
Base Specifications
| Info | |
|---|---|
|
Product Image
|
|
|
Model
|
|
|
Description
|
V-Blade Snow Plow
|
|
Product Type
|
|
|
Sku
|
39.55271
|
| General | |
|
Width in Forward 'V'
|
48.5in
123.2cm
|
|
Width in Reverse 'V'
|
48in
121.9cm
|
|
Rt. wing angle forward and back
|
degrees
|
|
Lt. wing angle forward and back
|
degrees
|
|
Skid Shoes
|
standard/optionaladjustable cast iron skid shoe discs
|
|
Hydraulic Power Angle
|
standard/optional
|
| Dimensions | |
|
Front Mount
|
|
|
4000 Series Mount
|
|
|
3000 Series Mount
|
|
| Dimensions | |
|
Length
|
38in
96.52cm
|
|
Overall Width
|
55in
139.7cm
|
|
Height
|
24in
60.96cm
|
|
Weight
|
240lb
108.9kg
|
|
Length with KT Tractor
|
105.8in
268.6cm
|
|
Length with LE Tractor
|
96.25in
244.5cm
|
|
Wing Kit Weight
|
50lb
22.68kg
|
|
Crated Weight
|
372lb
168.7kg
|
|
Shipping Dimensions(LWH)
|
52.25in
132.7cm
|
