The Ventrac MJ840 Contour Mower's 83-inch working width and 40 degrees of motion allow golf course superintendents to mow undulating fairways and slopes with precision, ensuring a pristine finish.
The MJ840’s rear discharge system keeps fairways clean by evenly dispersing clippings, reducing buildup on playing surfaces.
The MJ840 Contour Mower's independent decks float and follow the terrain, ensuring even cuts on slopes up to 30 degrees, ideal for maintaining challenging golf course landscapes.
From greenside bunkers to water hazards, the MJ840 Contour Mower delivers precise mowing in challenging areas of golf course landscapes.
Enhance the aesthetics of your golf course with the MJ840's full rear rollers, which create crisp, defined lines and stripes, giving your course a well-manicured look.
Built for versatility, the MJ840 Contour Mower includes full rear rollers and front rollers to prevent scalping and provide a polished cut.
Designed with flip-up decks for easy blade changes and cleaning, the MJ840 keeps maintenance quick and simple.
The Ventrac MJ840 Contour Mower features an 83-inch working width and three floating decks, delivering precision mowing across uneven terrain.
The MJ840's rear discharge system ensures clippings are efficiently expelled, preventing buildup and maintaining clean fairways and roughs on golf courses.
Designed for golf course professionals, the MJ840's independent floating decks and full rear rollers provide consistent cutting and striking patterns, enhancing the visual appeal of greens and tees.

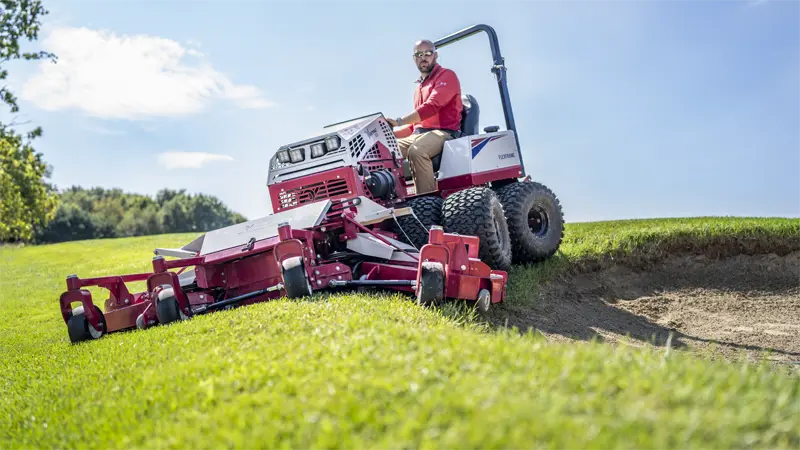

Golf course superintendents trust the Ventrac MJ840 Contour Mower to deliver a smooth, consistent cut across fairways, roughs, and slopes up to 30 degrees.
With independent floating decks, the MJ840 perfectly follows undulating golf course terrain, maintaining pristine turf conditions.
Golf courses trust the Ventrac MJ840 for its ability to navigate challenging terrains, from bunkers to water hazards, delivering a consistent and professional cut every time.
Designed for versatility, the MJ840 Contour Mower adapts to various turf conditions, making it an essential tool for golf course maintenance teams seeking efficiency and quality.
Create striking visual patterns on your golf course with the MJ840’s full rear rollers, leaving behind crisp, professional stripes.

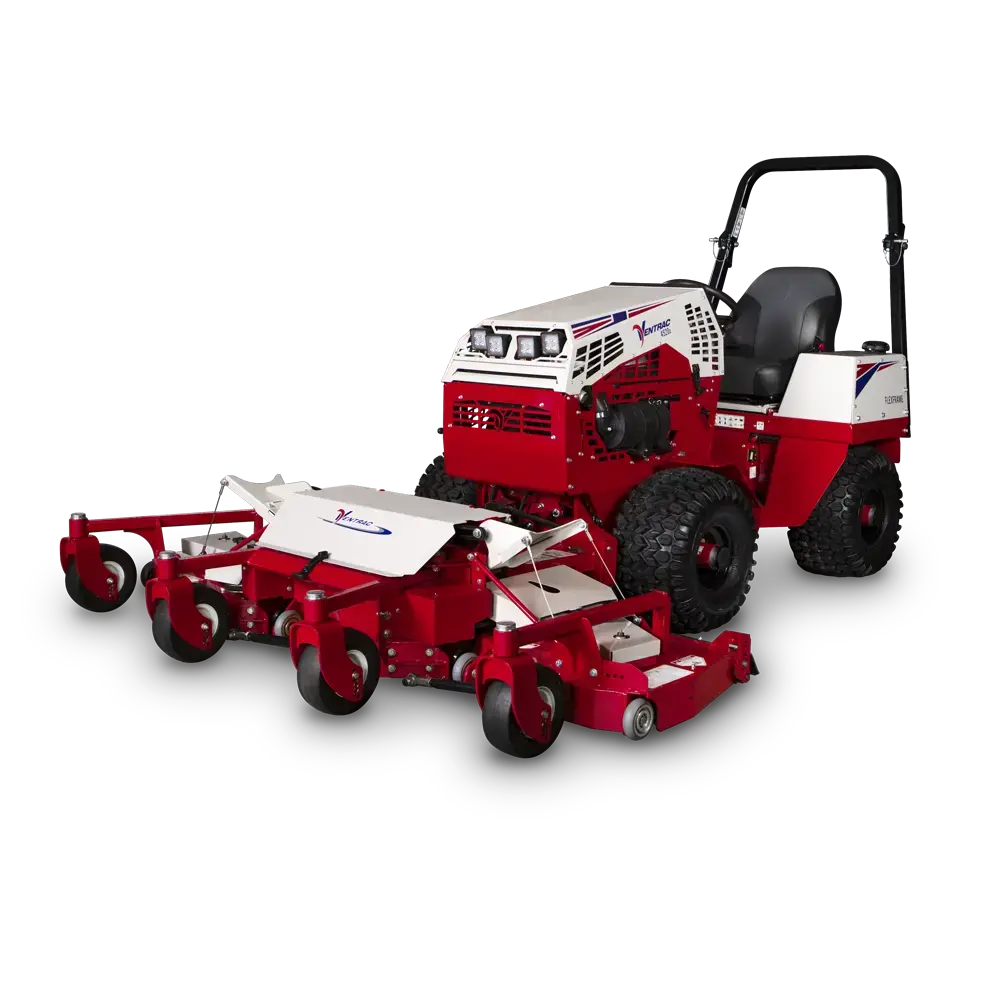

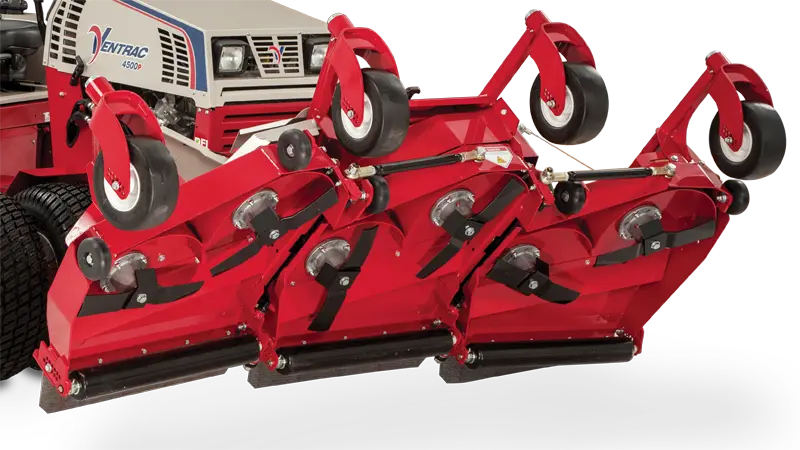

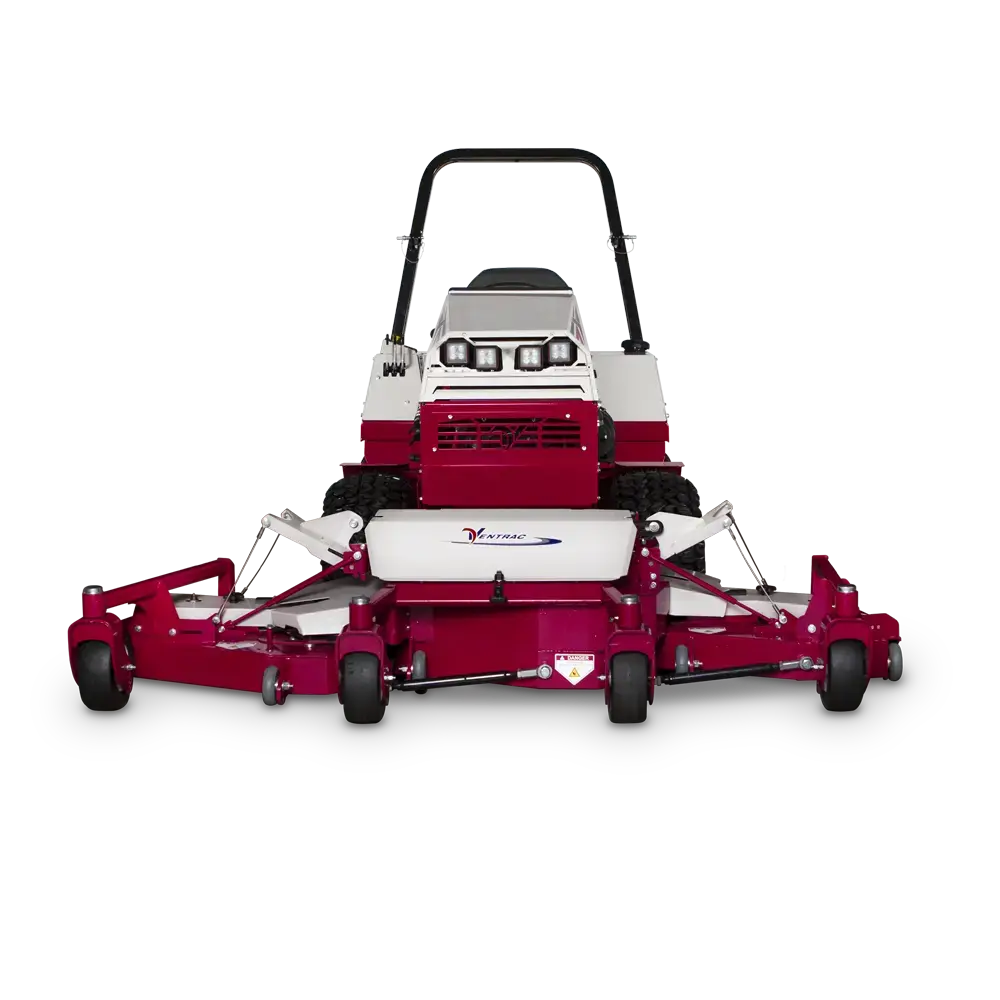

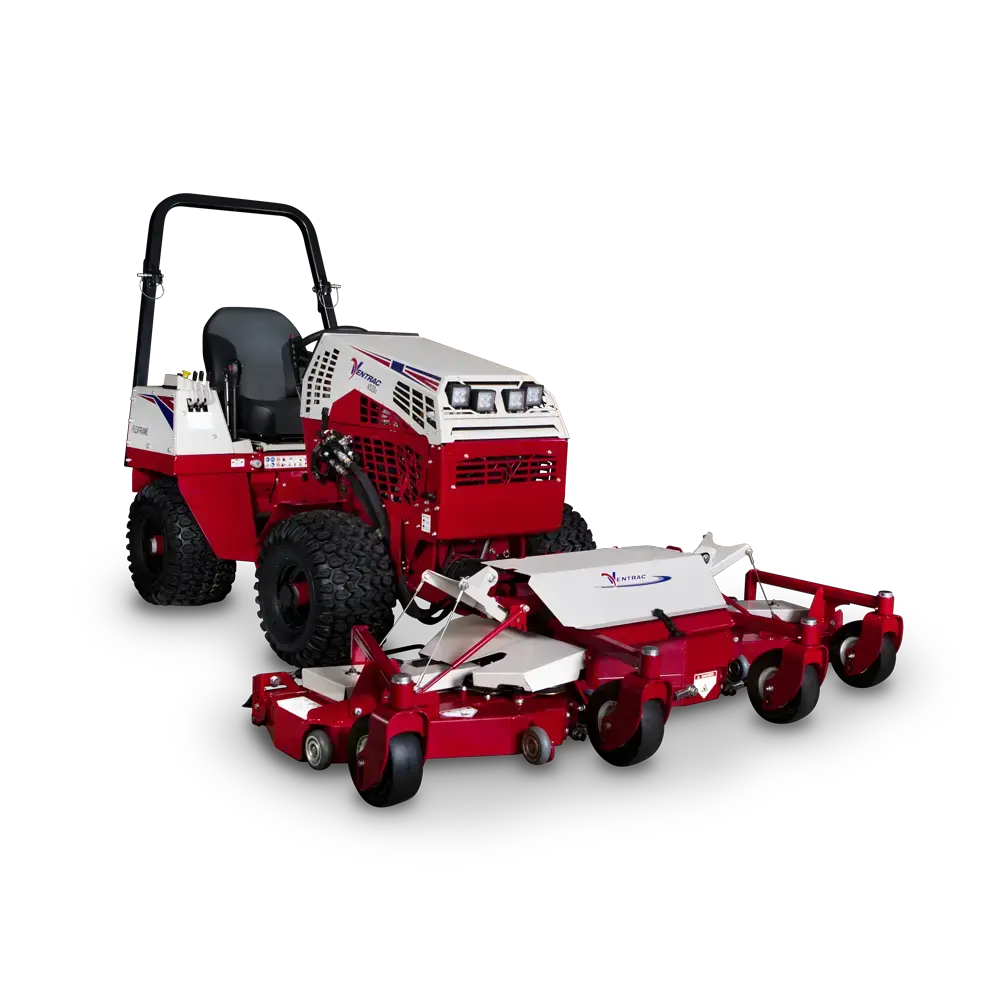

Ventrac's Contour Mower features a 83 inch working width making quick work of precision mowing on high end properties. Three decks float independently and follow the contour of the terrain with up to 40 degrees of motion for each side deck. The MJ840 also features full rear rollers for even cutting and striping, rear discharge, and a flip-up deck design.
Feature List:
- 83" Mowing width
- 40 degrees of motion for side decks
- Front-to-back motion for ground variation
- Rear discharge
- Full rear rollers for even cutting and striping
- Front rollers for anti-scalping
- Belt drive with gearbox for mechanical efficiency and reliability
- Flip-up deck design
Young Golf Superintendent Manages Prestigious Course
Golf Course Mowing with a Contour Mower
The Total Package for Golf Course Maintenance
Simple Start | MJ840
https://www.ventrac.com/ When it comes to maintaining an elite property, a trusted and specialized mowing deck is essential to creating that polished look to a landscape. Ventrac’s Contour Mower is built for precision mowing on golf courses and resorts that have challenging terrain but also require professional results. It is unique in a way that three decks float independently and follow the contour of the terrain with up to 40 degrees of motion for each side deck. This ensures the best possible quality of cut while minimizing the scalping of the surface. The combination of Contour Deck and Ventrac 4500 tractor with dual wheels allows mowing of up to 30 degrees in any direction without destroying turf and keeping operator safety in mind. The total cut width of the Contour Deck is 83 inches with a rear discharge for clean results in an efficient manner. The deck also features full rear rollers for even cutting and striping to create a finished look that is expected from such an implement. When it comes time to clean the deck or service the blades, it couldn’t be easier with the quick, flip-up deck design. Easy access to the deck for servicing can be done by one person in less than a minute.
Products featured in this video: Ventrac 4500: https://www.ventrac.com/products/tractors/4500
MJ840 Contour Mower: https://www.ventrac.com/products/attachments/mj840
Tough Cut: https://www.ventrac.com/products/attachments/hq680
Finish Mower: https://www.ventrac.com/products/attachments/msmtmu
For more information, visit https://www.ventrac.com/
Find a dealer near you! https://www.ventrac.com/dealers
Get a FREE catalog! https://www.ventrac.com/contact/catalog
Subscribe here! https://www.youtube.com/channel/UC0aiC7V2JS3nh11R5tRuIUw
Connect with Us! Facebook - https://www.facebook.com/ventrac/ Instagram - @ventrac_tractors Twitter - @ventrac
Video Transcript: The contour mower is a rear discharge and has a total cut width of 83-inches there are a total of six 15 inch blades - on each deck which are counter rotating to provide the best discharge possible. This is our mower deck with the widest cut width. It's not necessarily suited for rough applications or larger acreage where a tough cut or maybe a finish mower would be a better solution. This deck is built for precision mowing which means golf courses or other high-end properties only. The contour mower attaches to the tractor with the front hitch arms the belt driven PTO and the two standard hydraulics. The contour deck has a cut height range between three-quarters of an inch and three and a half inches and quarter inch increments. To change the cut height settings refer to this graphic and select your cut height. It'll show you where you need to locate the front caster wheels. The anti-scalp wheels and the rear roller brackets on each individual deck both the left and right side caster wheels can be located in an outer or an inner position to change the characteristics of the deck. If it's located in the outermost position, it provides the most stability and consistent quality of cut and on the inner position, it provides the best overhang. If you're doing bunkers or something else that can be changed loosening these two bolts in the front and the one bolt in the back moving this whole thing over and then retightening those three bolts. Flipping the contour deck up is an easy process that takes less than a minute. The first step is to use the SDLA lever to raise the attachment all the way and to raise the left and right side decks to their highest position. You can grab the front of the deck and then pull the release lever in the back and flip the entire thing up. The contour mower also has a mulch kit available for it. It would be bolted here and here on each individual deck to lower the deck simply put pressure on the front and pull the release mechanism then once it's down make sure you return the belt tension spring to its upper setting with the deck in this position. It's a good opportunity to show the movement of the side pods both up and down and front to back for a 40 degree total range of motion on each side. The rear SDLA lever controls this link which either allows the right and left decks to float all the way down or up or if it draws inward it pulls the decks up for transport position. It's important that when you're operating you have this gap here so that both of the decks can fall away from the center deck and actually contour down. This can be accomplished with an optional spool valve kit to allow you to place the secondary SDLA lever in float or you can set this position manually. It's recommended to have a weight transfer setting of 3 or 4 depending on your conditions but having it in 4 can sometimes cause the center deck to rise up over contours too much so pay attention and if you're missing grass lower the weight transfer setting to 2 or 3.
Base Specifications
| Info | |
|---|---|
|
Product Image
|
|
|
Model
|
|
|
Description
|
Contour Mower
|
|
Product Type
|
|
|
Sku
|
39.55160
|
|
Price
|
$10,080
|
| General | |
|
Blade Length
|
15in
38.1cm
|
|
Anti Scalp Rollers
|
5
|
|
Tip Speed
|
16400fpm
4999mpm
|
|
Center Deck Belt
|
BB78
|
|
Drive Belt
|
B45
|
|
Blades PN
|
79.0079 and 79.0080
|
|
Left and Right Deck Belt
|
BB96
|
| Dimensions | |
|
Attachment Type
|
Mower
|
|
Product Type
|
Attachment
|
|
Front Mount
|
|
|
4000 Series Mount
|
|
|
Mower Type
|
Finish
|
| Mower Specs | |
|
Cutting Positions
|
12
|
|
Cutting Width
|
83in
210.8cm
|
|
Cutting Heights (Standard)
|
0.75in
1.905cm
|
|
Deck Suspension
|
4 front flat-free tires with 3 full rear rollers
|
|
Discharge Type
|
Rear
|
|
Number of Blades
|
6(3 left hand, 3 right hand)
|
|
Flip-Up Deck
|
standard/optional
|
|
Blade Type
|
15in
38.1cm
|
|
Deck Construction
|
Multi-Gauge
|
| Dimensions | |
|
Length
|
52in
132.1cm
|
|
Overall Width
|
84in
213.4cm
|
|
Height
|
22in
55.88cm
|
|
Weight
|
584lb
264.9kg
|
MJ840 Benefits
- Deck Width
- 83in
- Area/Hour
- Time
- Area/Hour
- Time
